Intelligent Area Controller, Built-in Control Logic, Replacing Traditional PLCs

The Baimatech Intelligent Area Controller integrates data acquisition, edge computing, and intelligent interlocking functions, with built-in device control logic and edge computing strategies, enabling intelligent autonomous sensing and control of IoT devices. Compared to traditional PLCs, the area controller offers more powerful processing capabilities, more flexible interlocking control, support for richer communication protocols, a more universal programming language environment, easier use and maintenance, and higher cost-effectiveness.

Application Scenarios

Baimatech area controllers help users transfer control logic and data processing to the edge, widely used in centralized equipment management and intelligent interlocking scenarios. Examples include smart utility corridors, smart buildings, data center monitoring, industrial automation, wastewater treatment, and smart cities.

Rich Interfaces, Flexible Expansion

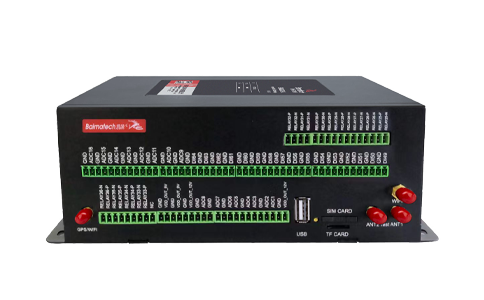

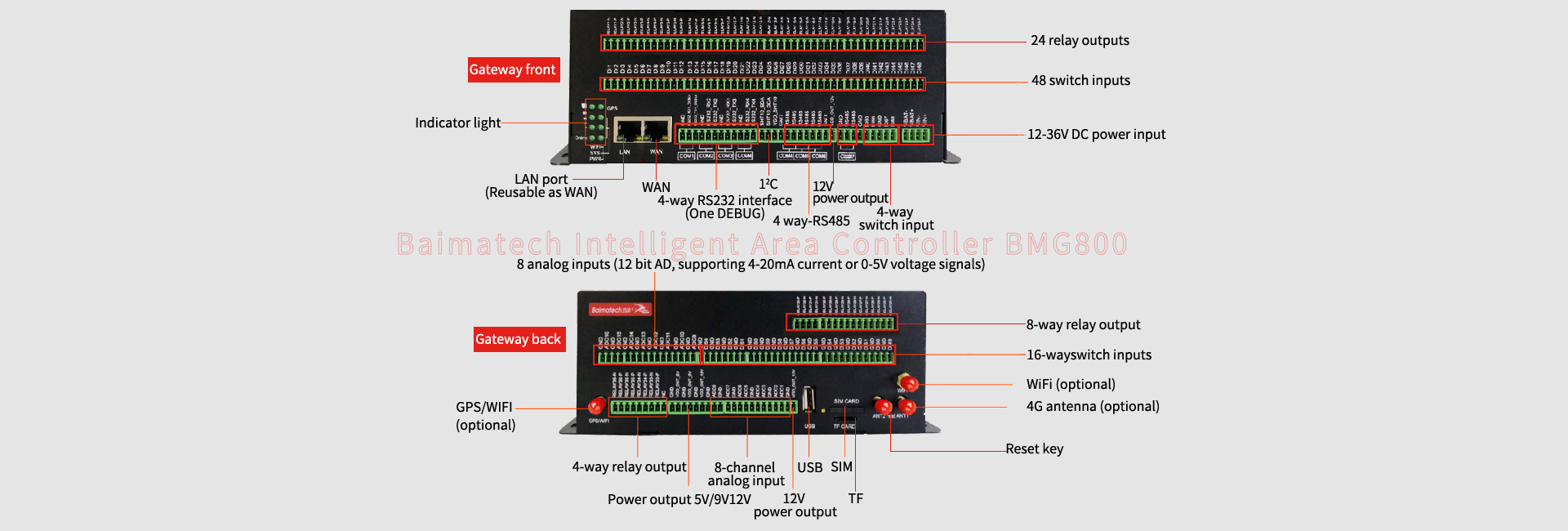

The Baimatech Intelligent Area Controller offers flexible interface expansion to fully meet project needs. It includes: 1 WAN port (reusable as LAN), 1 LAN port, 4 RS232 interfaces (1 DEBUG), 4 RS485 interfaces (1 reusable RS232), 1 USB interface, 1 I2C interface, 68 digital input interfaces, 16 analog input interfaces, 36 relay outputs, 5 power outputs, GPS (optional), and more.

Easy Deployment of Control Logic

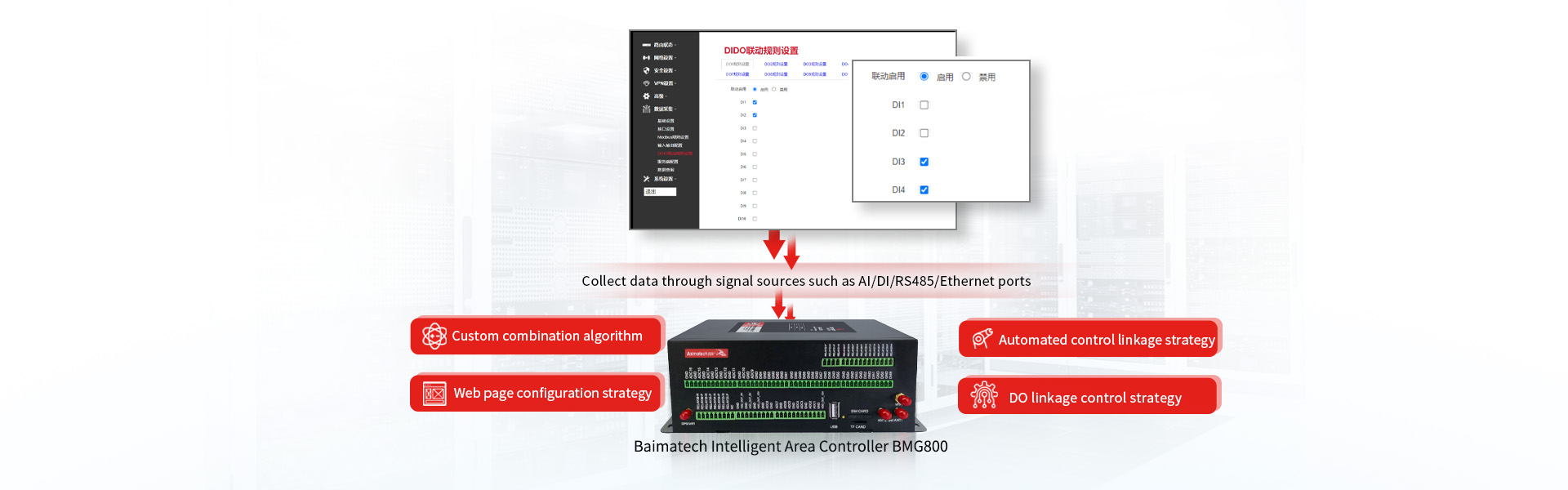

The Baimatech Intelligent Area Controller supports efficient configuration of automation control and interlocking strategies for edge devices, offering higher flexibility and configurability. Data is collected through AI/DI/RS485/network interfaces, and custom combination algorithms (supporting logical expressions, AND/OR rules, time period polling, variable value triggering, etc.) enable flexible DO interlocking control strategies and web page configuration strategies.

Providing Standard API Interfaces, Supporting Personalized Secondary Development

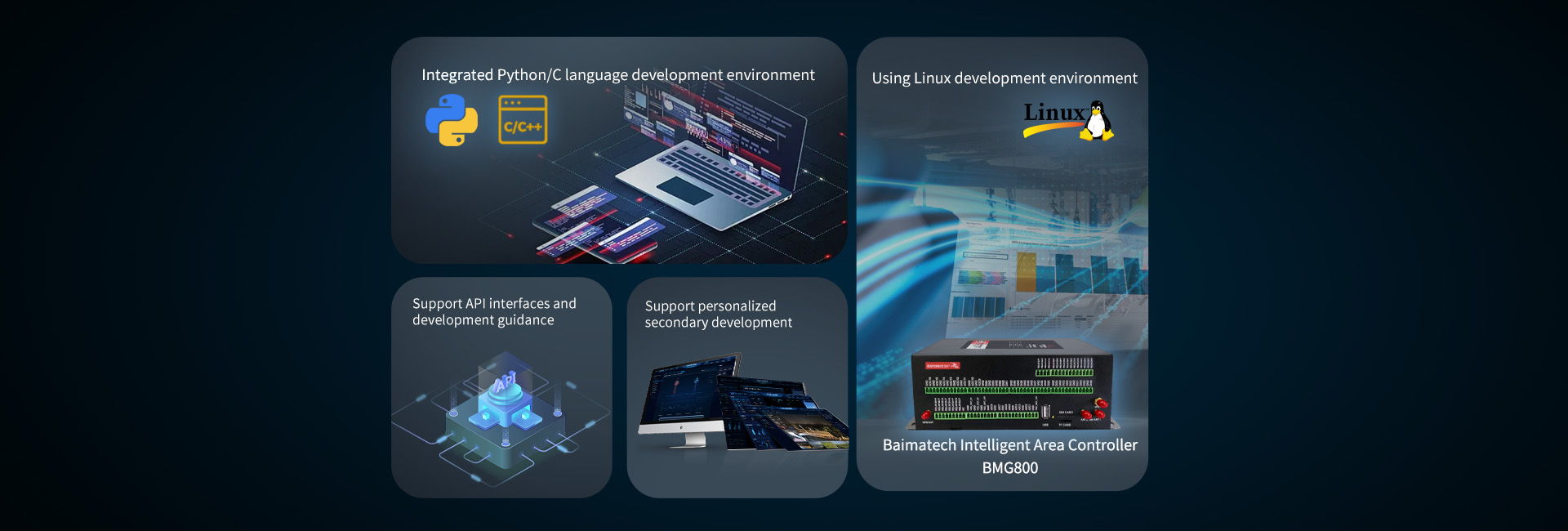

The Baimatech Area Controller runs on the Linux operating system, integrating Python and C language development environments, and providing standard API interfaces and development guidance, offering a stable and fast platform for users' secondary application development. This makes it convenient for project parties to develop exclusive applications, multi-device interlocking applications, multi-terminal collaborative applications, etc., according to the needs of the scenario.

Communication Protocols, Interconnected and Interoperable

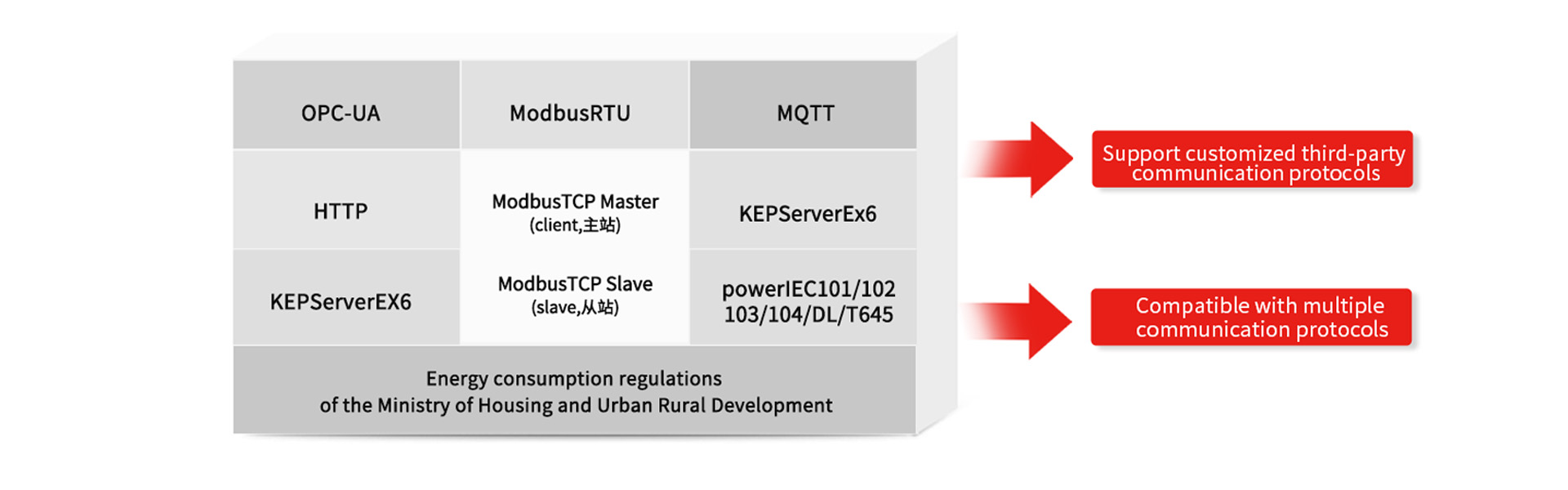

Compatible with mainstream communication protocols, including ModbusRTU, ModbusTCP Master (Client) & ModbusTCP Slave (Server), MQTT, OPC-UA, HTTP, environmental 212 protocol, Ministry of Housing and Urban-Rural Development energy consumption protocol, power IEC101/104/ DL/T645 protocol and power 61850 protocol, KEPServerEX6 (industrial automation processing software), etc., and supports custom interfacing with private communication protocols. Helps users quickly interface with sensors, meters, actuators, databases, etc.

Integrated Intelligent Control Cabinet

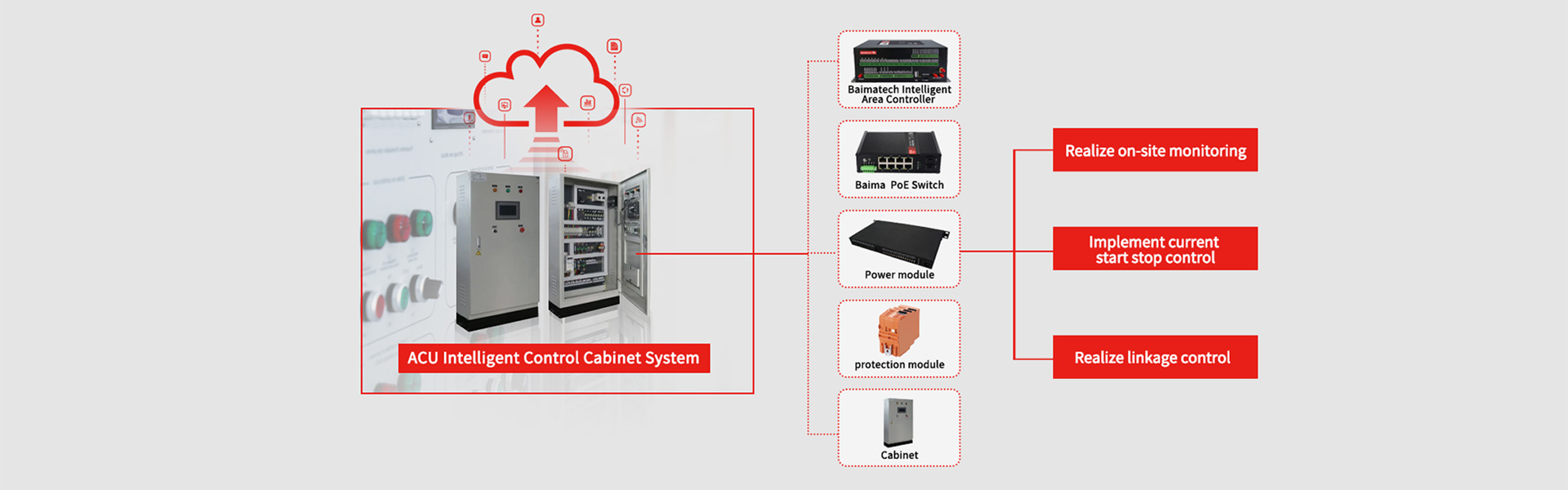

The ACU intelligent control cabinet system comprises the area intelligent controller, industrial switch, power module, protection module, cabinet, and more. The Baimatech area controller is the core brain of the control cabinet, creating a powerful programmable controller system for on-site monitoring, start-stop control, interlocking control, and more.

Typical Application Scenario 1

Comprehensive Utility Corridor Monitoring

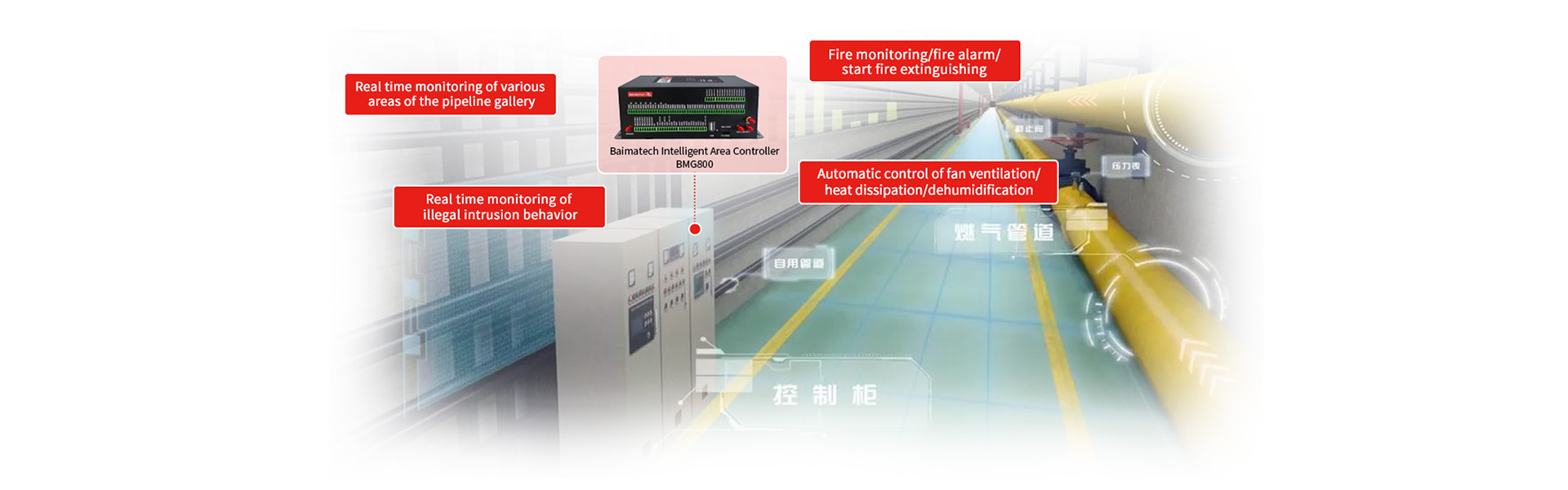

The Baimatech Intelligent Area Controller can interface with environmental sensors to monitor temperature, humidity, gas composition, gas concentration, etc., in various areas of the utility corridor in real-time. When environmental data exceeds thresholds, the area controller automatically controls fans for ventilation, cooling, dehumidification, etc., conducting 24/7 fire monitoring, fire alarm, and fire extinguishing operations. It can also interface with infrared perimeter devices, security surveillance equipment, etc., for real-time monitoring of illegal intrusions, and automatically alarm, capture, and locate them.

Typical Application Scenario 2 - Building Automation System

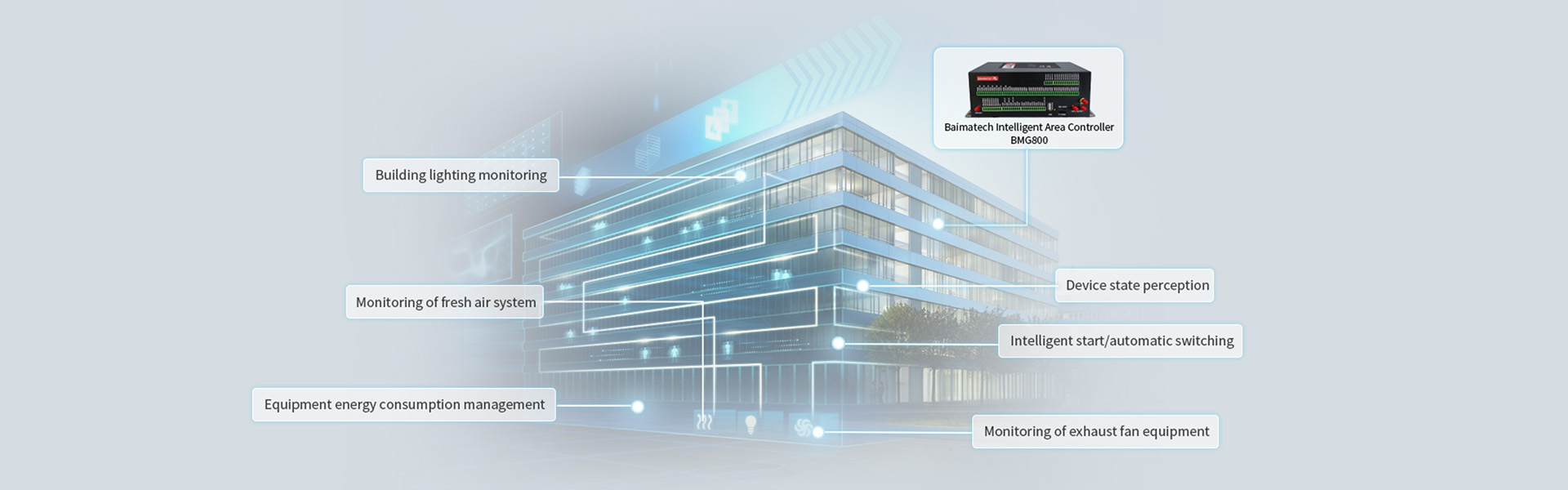

Through the Baimatech Intelligent Area Controller, centralized monitoring and control of lighting, air conditioning, fresh air systems, constant temperature and humidity systems, exhaust fans, sump pits, pumps, chillers, etc., can be achieved. This includes intelligent start-stop, automatic switching, sensing of switch/operation/fault status, energy management, and more.
