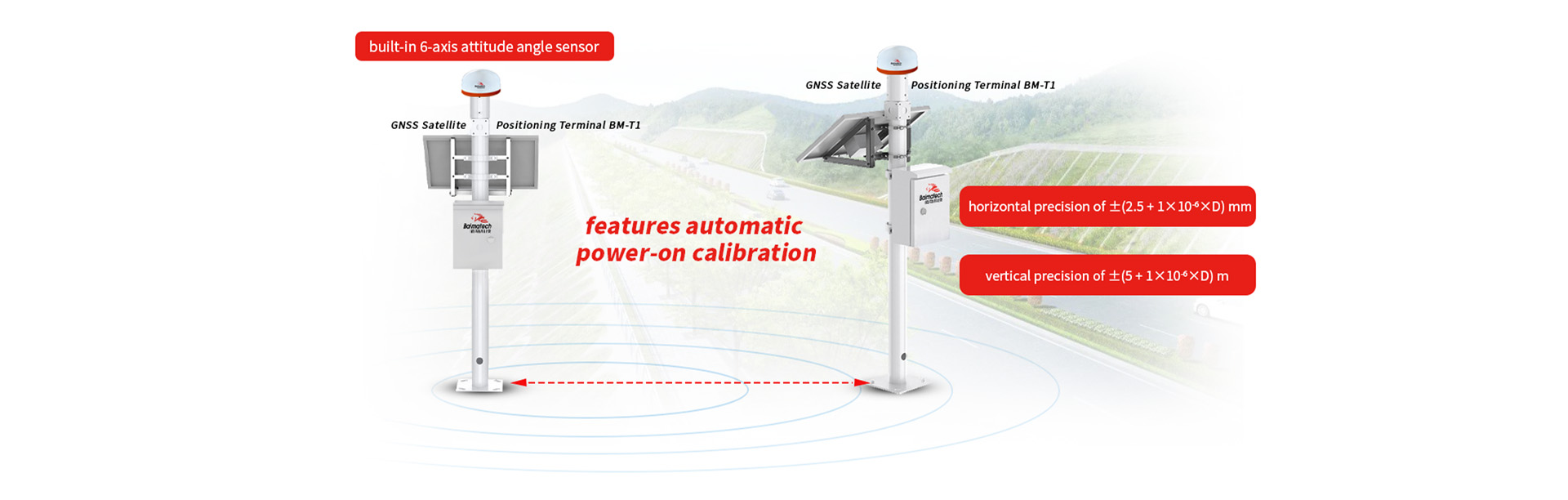

Baimatech high-precision positioning terminal

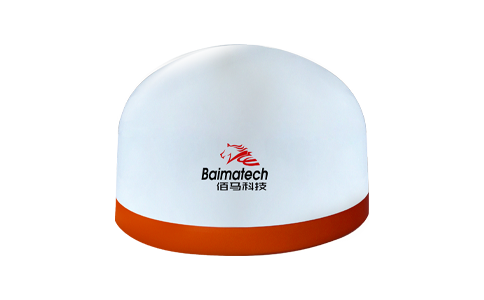

The Baimatech BM-T1 satellite positioning terminal is equipped with a high-precision positioning module and achieves an IP68 protection rating. It offers advantages such as high positioning accuracy, high integration, and high stability, meeting the requirements for wireless communication, low power consumption, anti-tampering, remote control, portable installation, and intelligent response. It enables precise detection of millimeter-level shifts.

Wide Application Scenarios

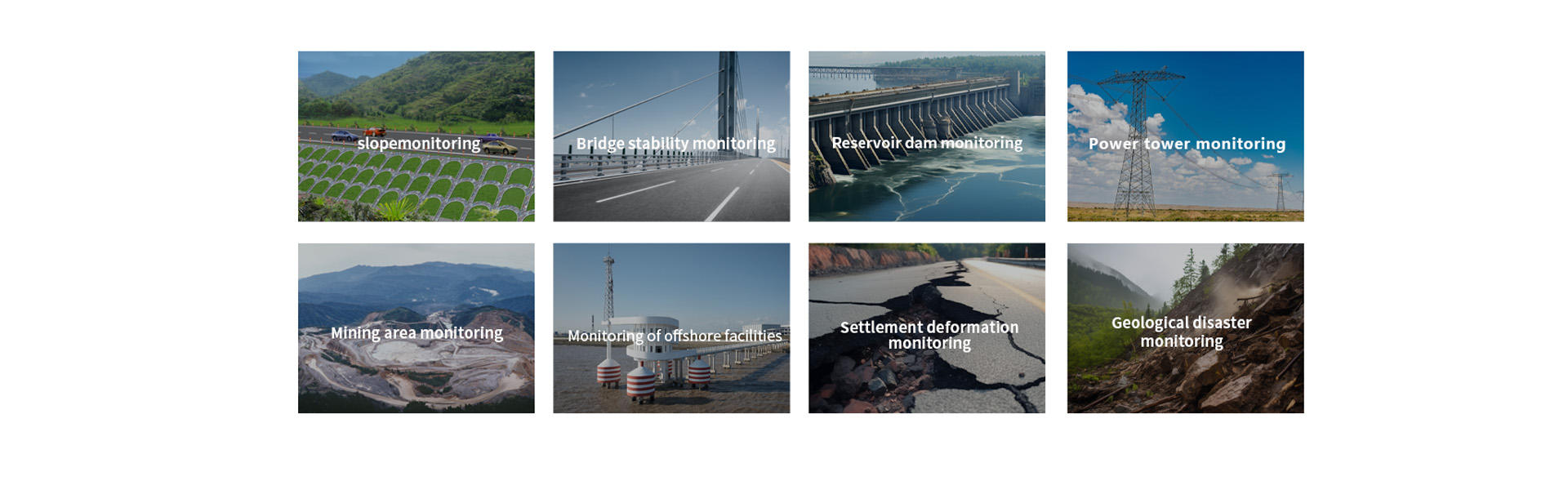

The Baimatech high-precision positioning terminal is suitable for a wide range of scenarios. It is applicable in fields such as highway/railway slope monitoring, bridge stability monitoring, reservoir dam monitoring, power pole tower monitoring, mining area control and monitoring, offshore facility monitoring, geographic settlement deformation monitoring, and geological disaster monitoring and early warning.

Standardized Data Collection Interface, Compatible with

Mainstream Data Acquisition Protocols

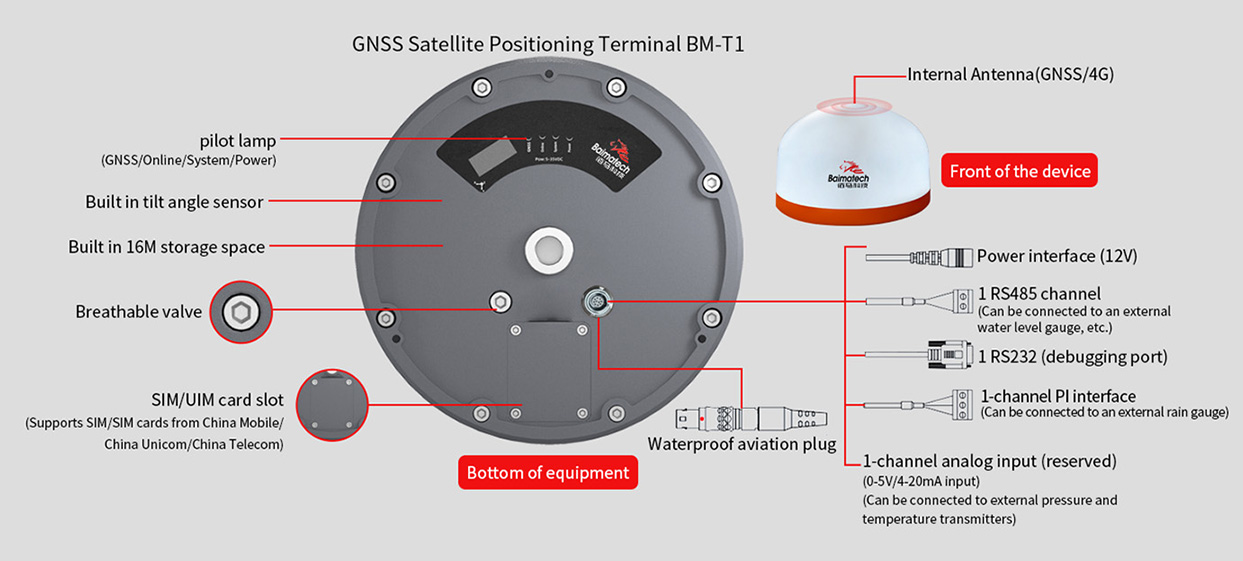

The Baimatech device features 1 RS232 serial port, 1 RS485 serial port, and a pulse input (PI), with an additional analog input reserved. It supports integration with various sensors such as rain gauges, flow weirs, water level meters, pressure transmitters, and temperature transmitters. The device also has 16MB of built-in storage and supports SIM/UIM cards from mobile operators like China Mobile, China Unicom, and China Telecom. It is compatible with mainstream RTCM protocol data and can perform intelligent analysis of the monitoring site using multi-source data.

Integrated Intelligent Management Platform

The Baimatech GNSS high-precision positioning terminal is ready to work immediately upon power-on and supports automatic connection to the Baimatech IoT cloud platform. The device is also equipped with an intelligent management platform that supports remote online configuration, control, upgrades, data analysis, system monitoring, and more, making project management efficient and convenient.

Ultra-Low Power Consumption, Ultra-Long Battery Life

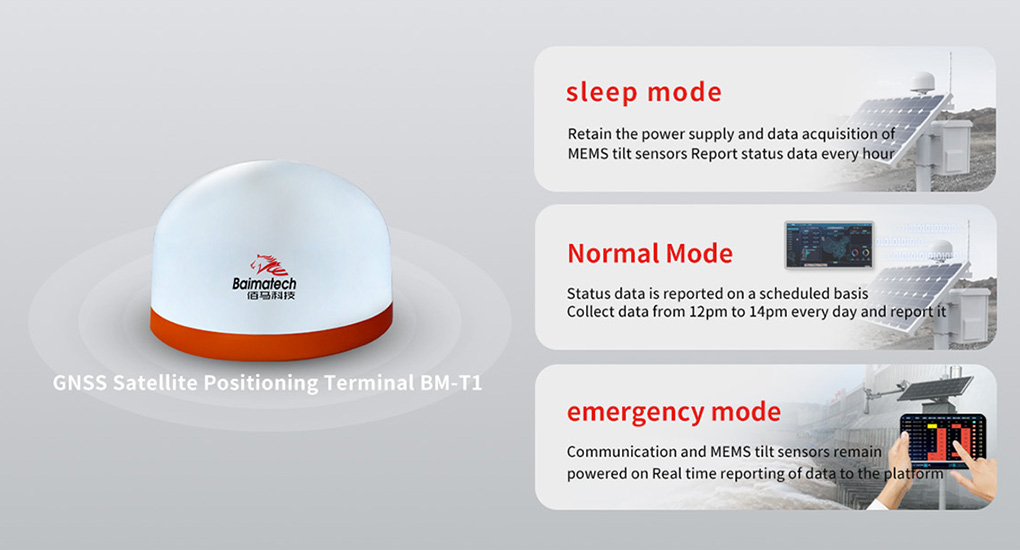

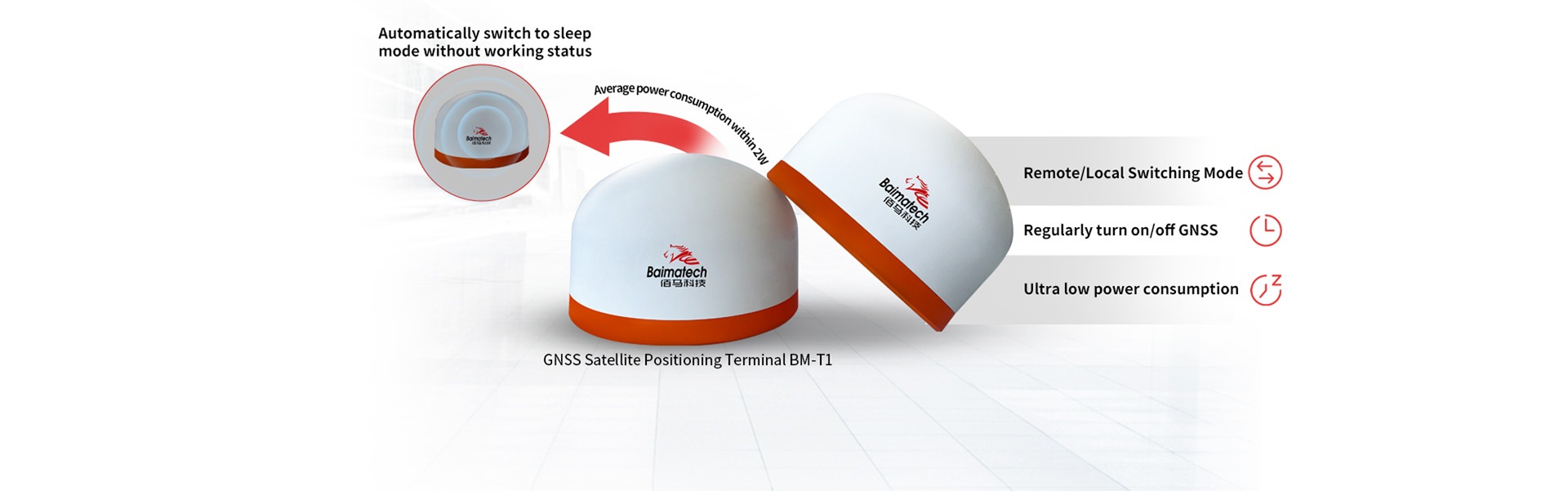

The entire device has an average power consumption of under 2W and supports remote or local switching between data collection mode and sleep mode. When not in operation, it automatically enters sleep mode, with scheduled activation/deactivation of GNSS, communication, and other functions, significantly extending battery life. It also supports battery power supply, offering more flexibility in deployment.

IP68 Protection, Resilient to Harsh Environmental Conditions

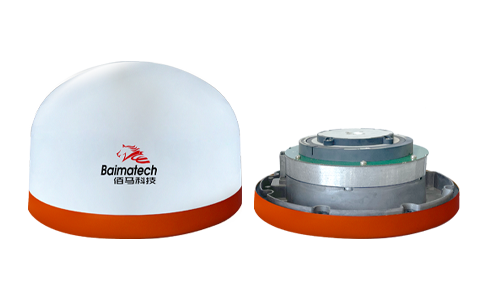

The Baimatech GNSS high-precision positioning terminal is built with industrial-grade components to achieve an IP68 dustproof and waterproof rating. It meets requirements for high and low temperature resistance, high salt and humidity tolerance, and corrosion resistance. The device has passed EMC, vibration, high-intensity operation, and other certification tests, making it highly durable in various harsh outdoor environmental conditions.
