4G/Cat.1 Single/Dual Lamp Controller
Series Models:
Baimatech 4G/Cat.1 intelligent lamp controller offers wireless communication, enabling convenient networking without wiring. It supports up to 1200W power control, 0-10V and PWM stepless dimming, remote data monitoring, real-time remote control, edge intelligent strategies, disaster recovery communication, intelligent alarms, and more. Applicable scenarios include: smart streetlights, road lighting, park lighting, scenic area lighting, dock lighting, factory lighting, etc.
Sample Request

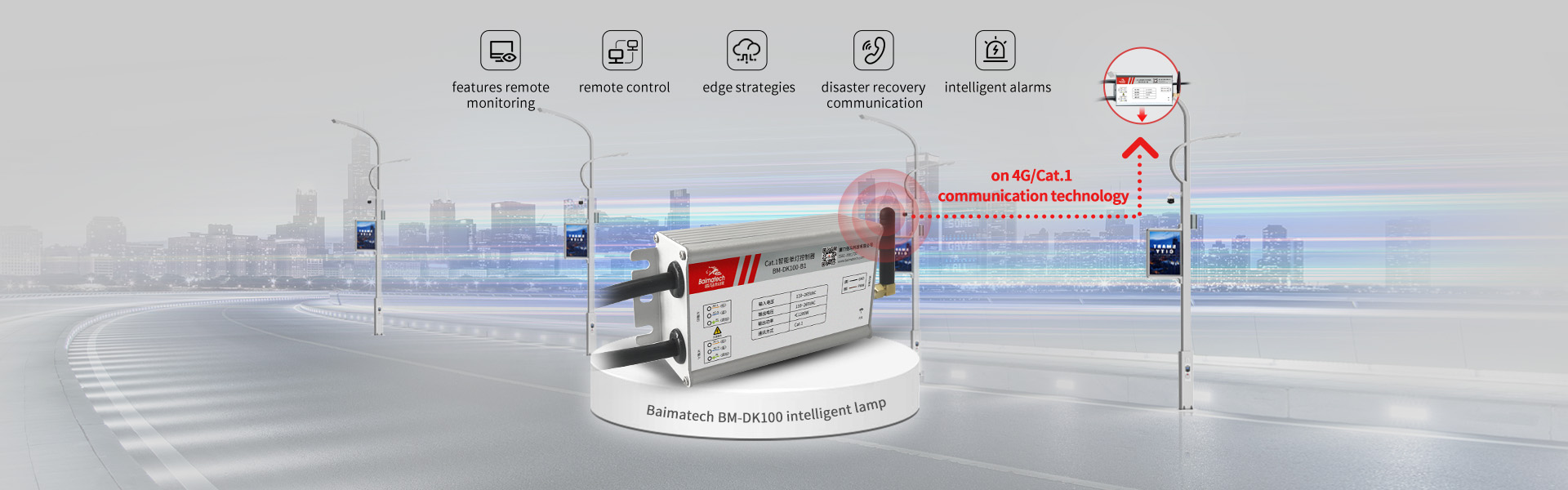

Baimatech 4G/Cat.1 Intelligent Lamp Controller

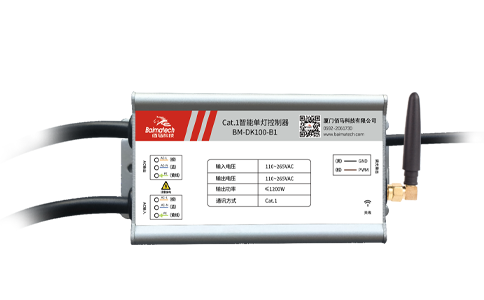

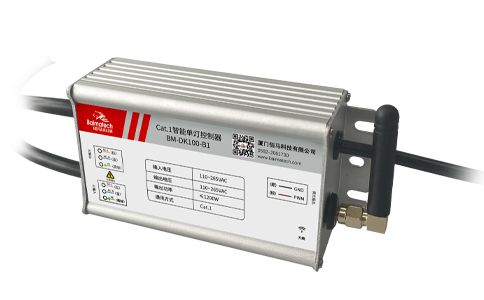

The Baimatech BM-DK100 intelligent lamp controller, developed based on 4G/Cat.1 communication technology, offers wireless communication and convenient networking without wiring. It supports up to 1200W power control, 0-10V and PWM stepless dimming, and features remote monitoring, remote control, edge strategies, disaster recovery communication, intelligent alarms, and more, making city lighting management smarter.



Rich Application Scenarios, Supports Various Lamp Control

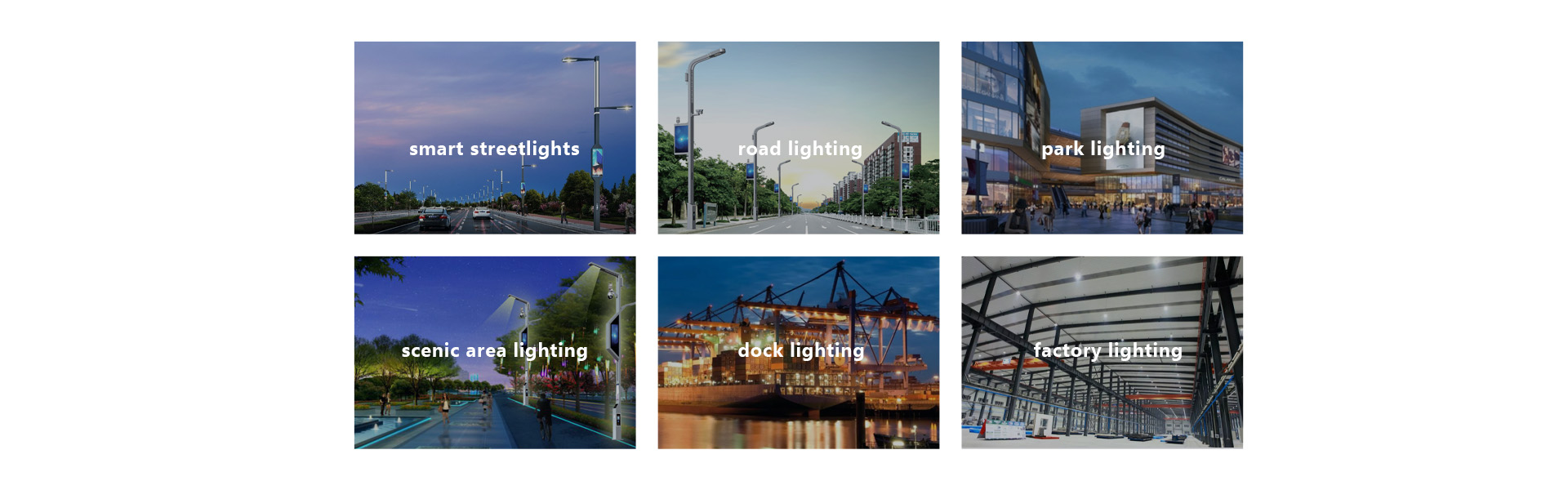

Suitable for the switch and dimming of LED lights, high-pressure sodium lights, metal halide lights, and more, effectively solving the issues of non-intelligent streetlight management, large inspection workloads, and high lighting energy consumption. Applicable scenarios include: smart streetlights, road lighting, park lighting, scenic area lighting, dock lighting, factory lighting, etc.



Comprehensive Parameter Monitoring, Complete Control of Streetlight Operation Status

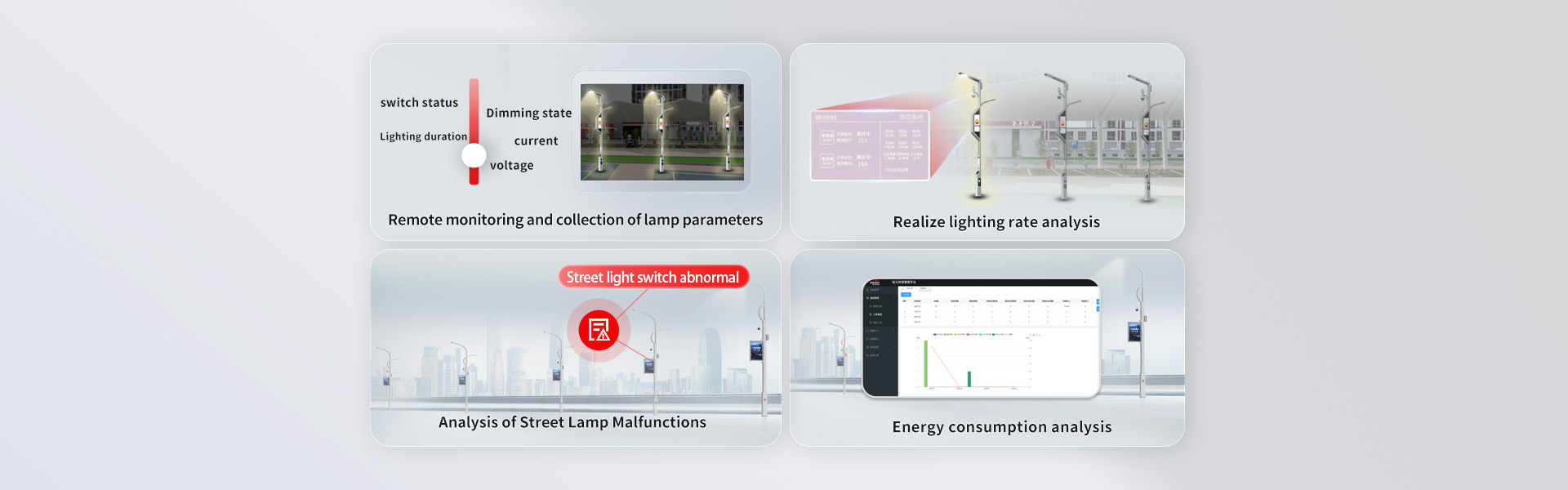

Baimatech 4G/Cat.1 lamp controller can remotely monitor and collect lamp parameters, including switch status, dimming status, lighting duration, voltage, current, power, energy consumption, and more, achieving lighting rate analysis, streetlight fault analysis, energy consumption analysis, and thoroughly understanding the operation and energy-saving benefits of city streetlights. The device's standby power consumption is no more than 1 watt, further saving energy and reducing consumption.


Independent MCU,The system is more stable

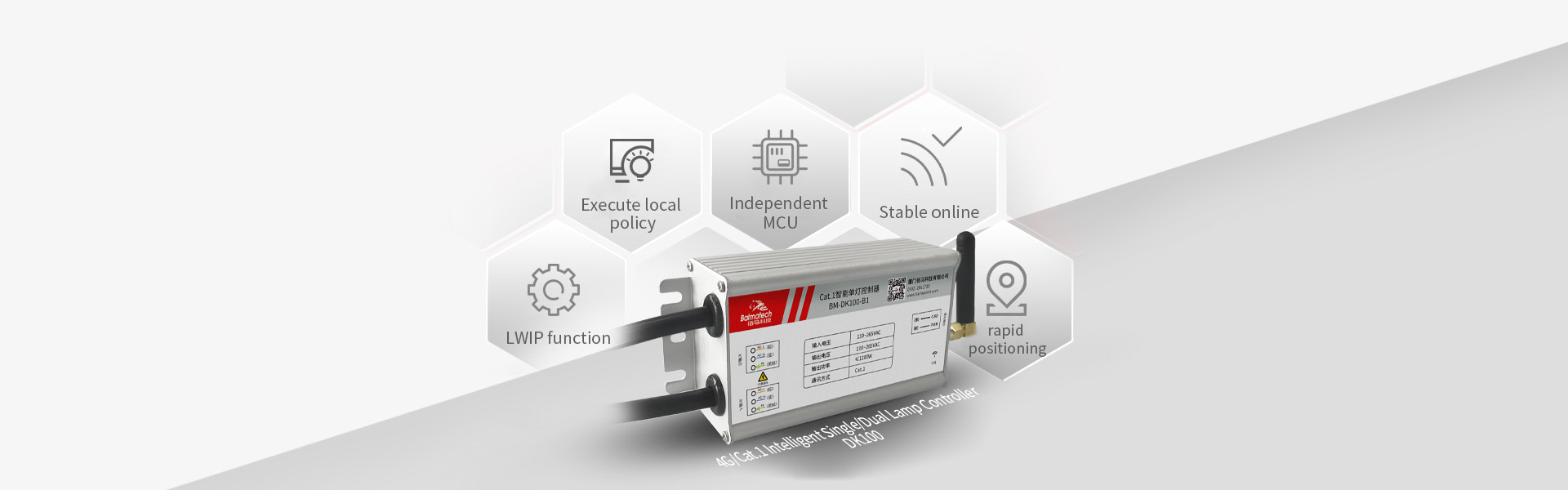

The MCU is decoupled from the communication module and can independently operate system functions, reducing failure rates. When the module is abnormal, it can still independently execute local policies to ensure stable device operation. Simultaneously integrating a deeply optimized LWIP protocol stack can effectively avoid the problem of false links in CAT. 1 modules, quickly locate and handle network failures, and ensure real-time stable online operation of devices.

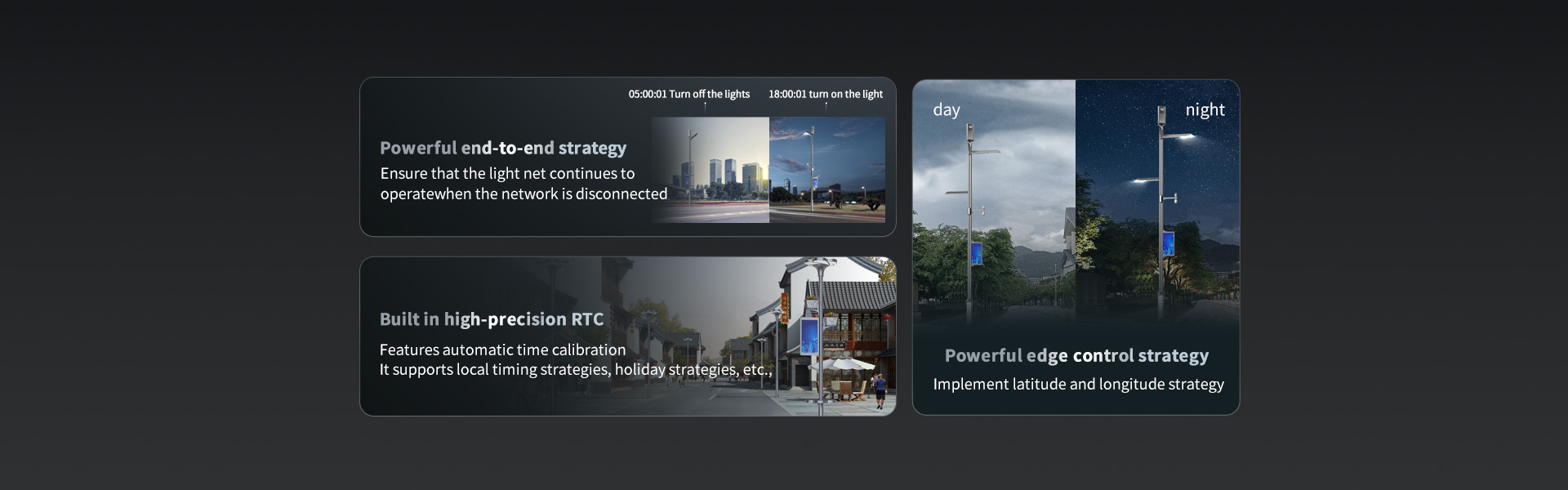

Edge Control, Normal Operation When Network is Down


Baimatech 4G/Cat.1 lamp controller supports powerful edge control strategies and end-side strategies, with a built-in high-precision RTC and dual online time calibration functions, ensuring accurate device timing. It supports local timing strategies, holiday strategies, latitude and longitude strategies, etc., ensuring the lamp network continues to operate normally when the network is down.

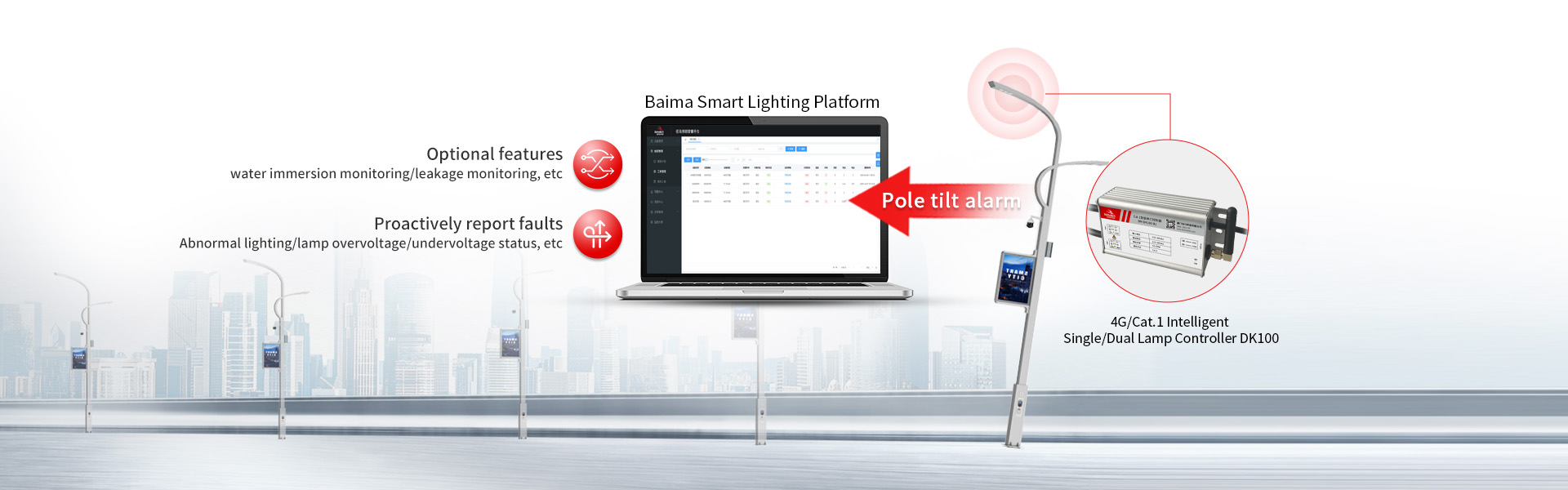

Proactive Fault Reporting, Optional Leakage/Inclination/Water Immersion Monitoring


The intelligent lamp controller supports real-time fault status reporting, including failed lamp switch-on/off, abnormal lamp switch-on/off, over-voltage, under-voltage, over-current, under-current, lamp over-temperature, etc. The lamp controller can also be optionally equipped with extended lamp pole inclination monitoring, water immersion monitoring, and leakage monitoring.


Rich Interfaces, Expandable to Lamp Motion Sensing

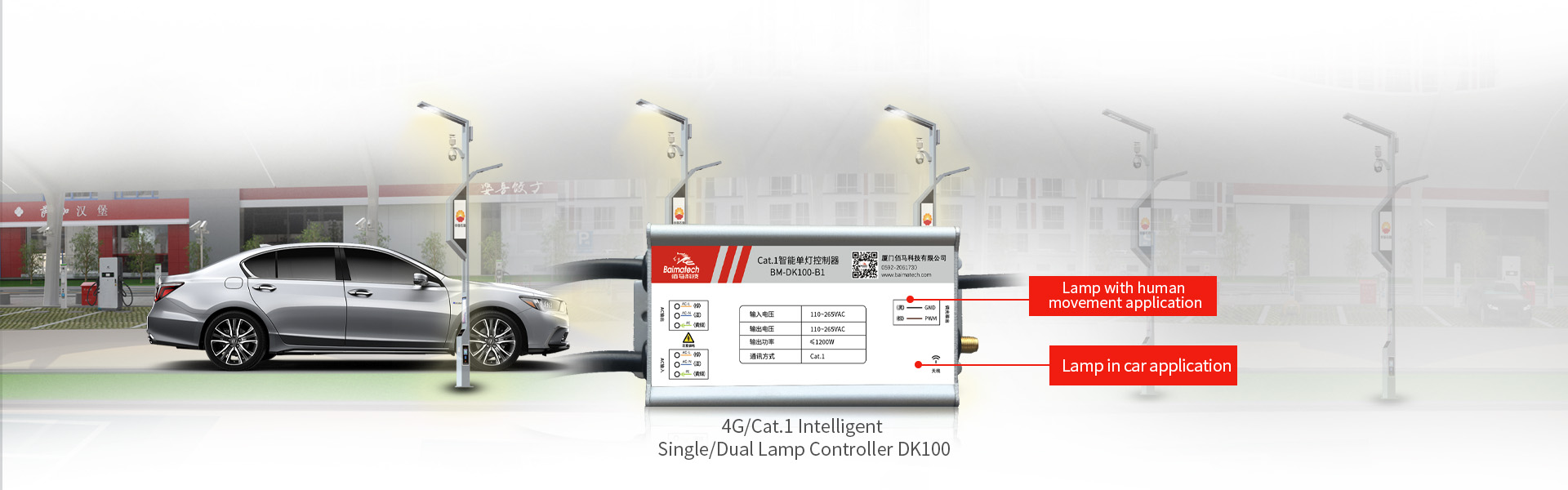

Baimatech 4G/Cat.1 lamp controller features RS485 interface and DI interface, expandable to interface with various environmental sensors and dynamic sensors, achieving more smart lighting applications such as lamp motion sensing for people and vehicles.


Reliable Communication, Multiple Technologies Ensuring Stable Lamp Network Operation

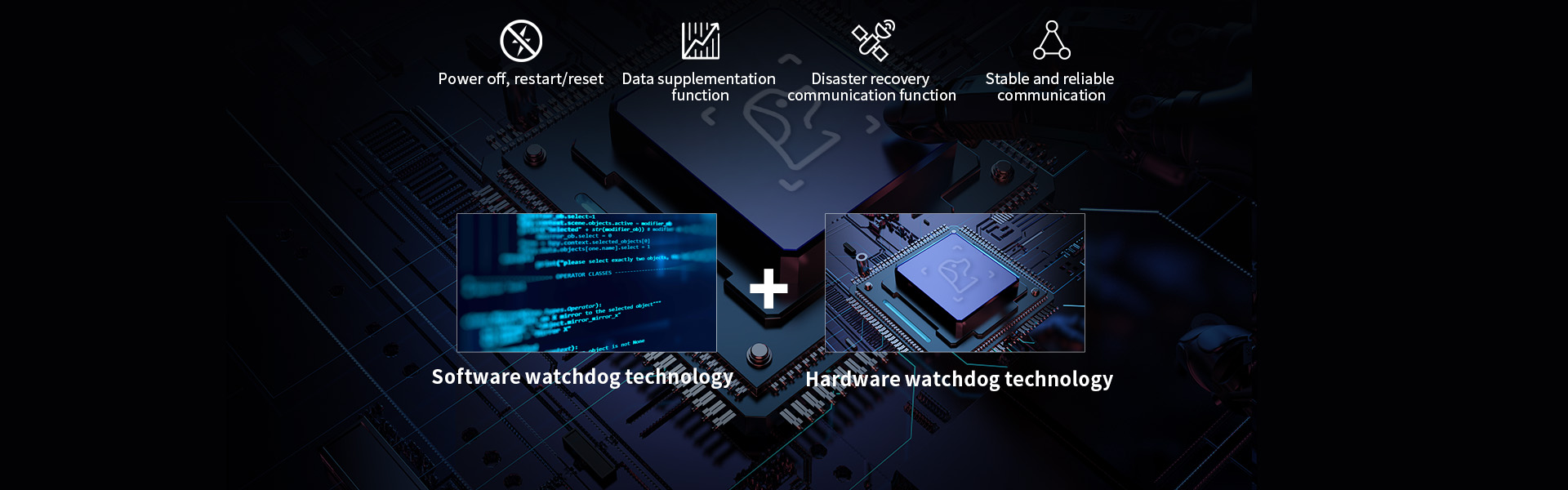

The intelligent lamp controller features software and hardware watchdog technologies, automatically waking up software or performing power-off restart/reset during occasional anomalies. It supports primary and backup center settings, automatically enabling the backup center to ensure system normal operation when the primary platform address is incorrect or the platform fails. It also supports data retransmission, disaster recovery communication, and data storage in the lamp controller during communication interruptions, with data resuming transmission to the platform after communication recovery.

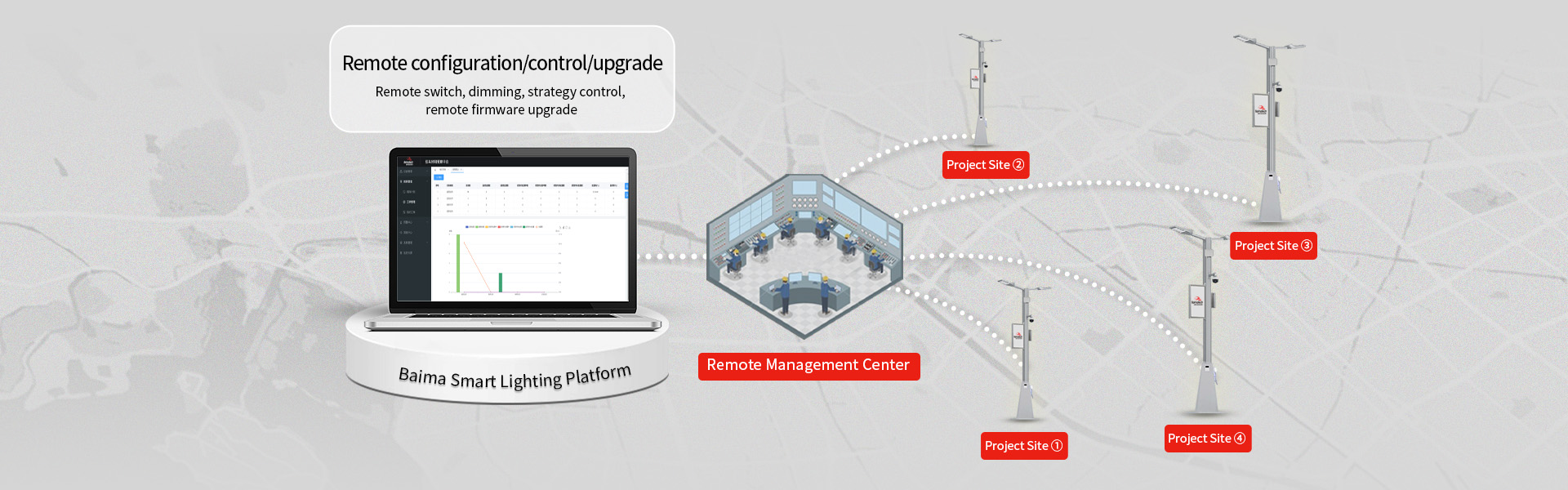

Remote Configuration/Upgrade, Easy and Convenient Maintenance


Baimatech 4G/Cat.1 intelligent lamp controller supports remote bulk firmware upgrade, bulk query, bulk configuration, and bulk control through the platform. It enables remote switch, dimming, strategy control, and more for lamps. It supports online modification of target network, heartbeat cycle, clock calibration, data calibration, and other function configurations, and supports remote firmware upgrade through the platform, making maintenance easy and convenient.

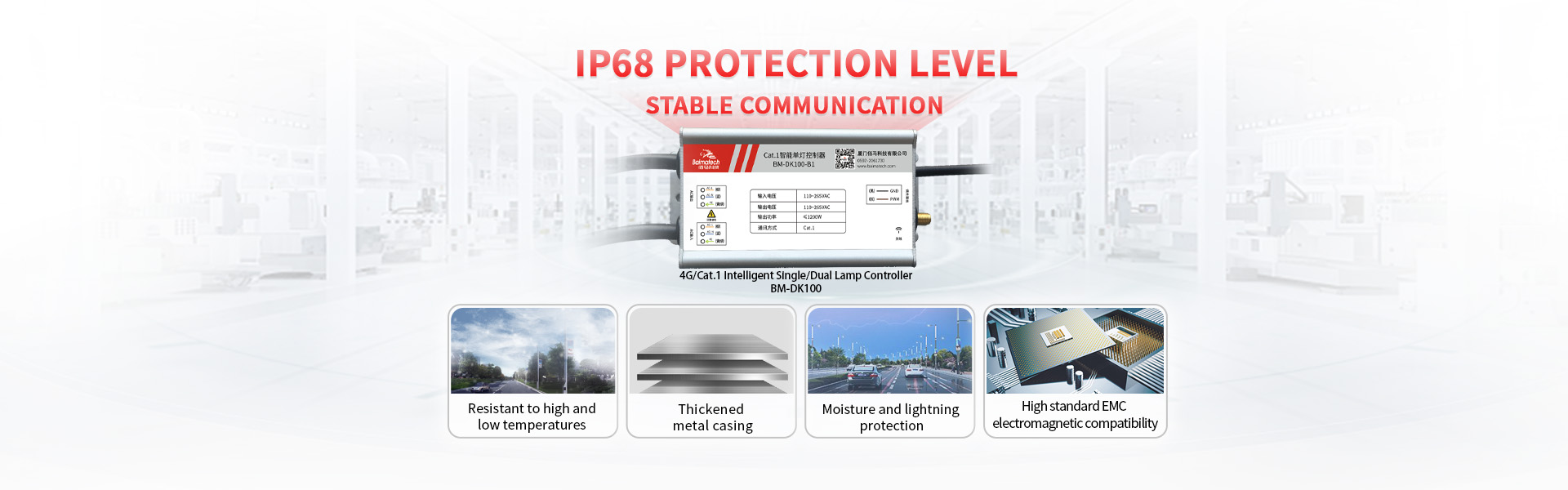

Industrial-Grade Quality, IP68 Protection Level


Industrial-grade components, IP68 protection level, thickened metal shell, robust and durable. Equipped with high-spec protection circuit, not less than ±4KV (line-to-line), suitable for complex power grid environments. Resistant to high and low temperatures (-40°C to 80°C), moisture, lightning, high-standard EMC electromagnetic compatibility, ensuring stable and continuous operation of the single lamp controller in extreme cold, high temperature, humidity, and strong electromagnetic interference environments. The standardized production process and strict quality assurance system exceed customer expectations.


Integrated Smart Lighting Management Platform

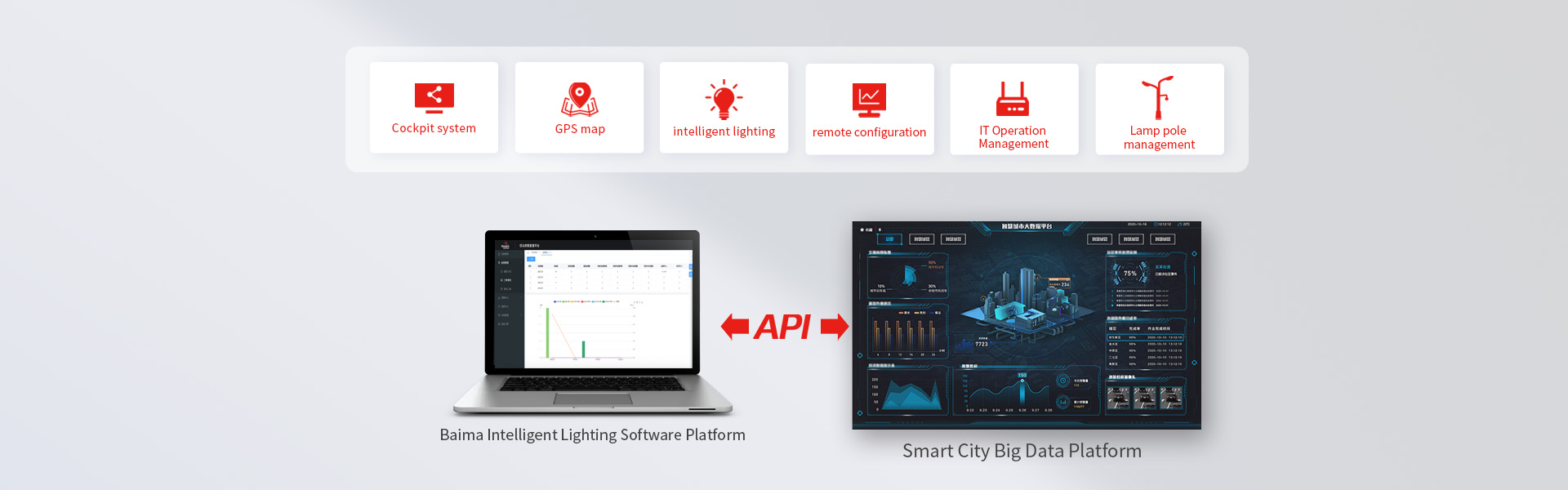

Integrated with Baimatech smart lighting software platform, offering powerful lighting visualization management. The platform features a modular design with functionalities including cockpit system, GIS map, intelligent lighting strategy configuration, remote lamp configuration/monitoring/control, data statistical analysis, online maintenance management, lamp asset management, and more. Open API interfaces allow smooth integration with third-party platforms such as smart city platforms and apps.
